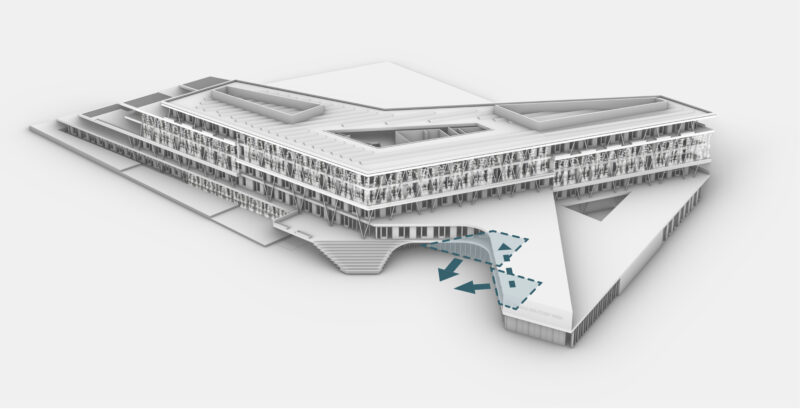

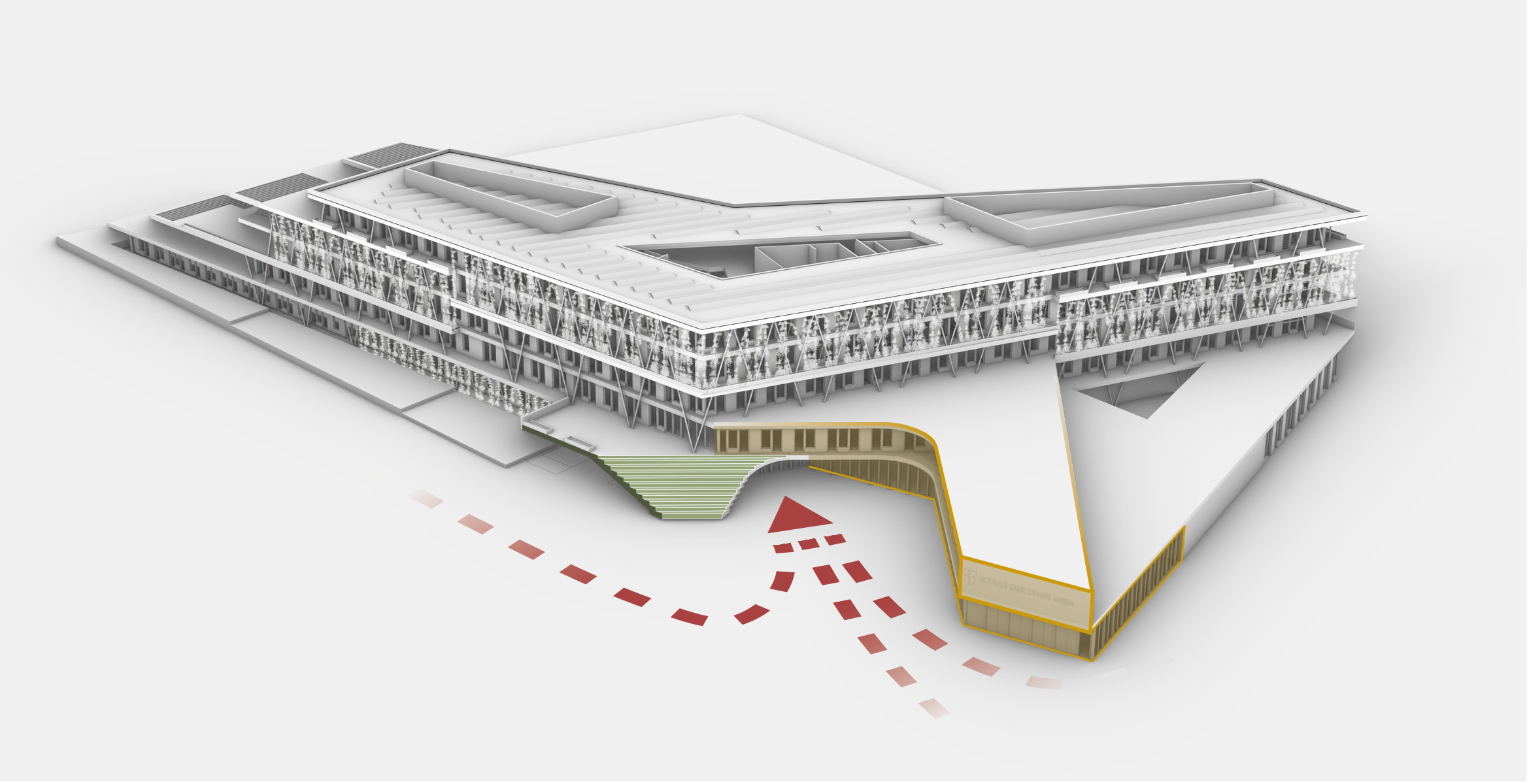

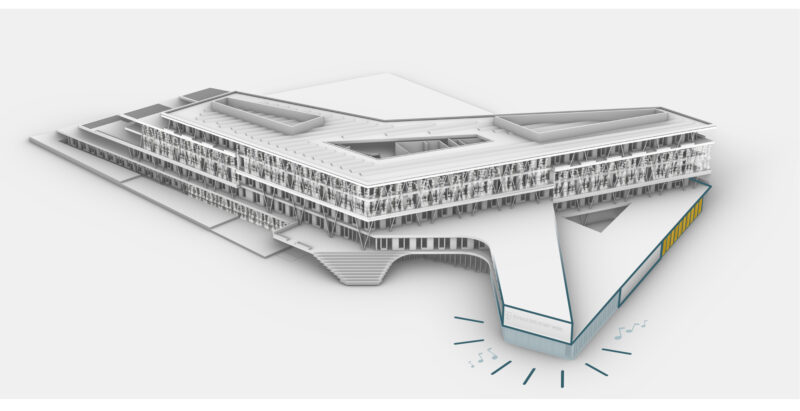

The one-story street wing oriented to the northeast generates into a two-story layered southeast wing. This two-story component clearly marks the main access situation here. At the same time, the street frontage towards Rebhanngasse is cut back in the corner area to the southern cul-de-sac, so that a more generous inviting spatial gesture is created for access to the main entrance.
Northwest Station Education Campus
Year
2023
Venue
Wiener Neustadt
State
Competition
Category
Education
Size
21.172 m²
Year |
Venue |
State |
Category |
Size |
|---|---|---|---|---|
2023 |
Wiener Neustadt |
Competition |
Education |
21.172 m² |
Year
2023
Venue
Wiener Neustadt
State
Competition
Category
Education
Size
21.172 m²

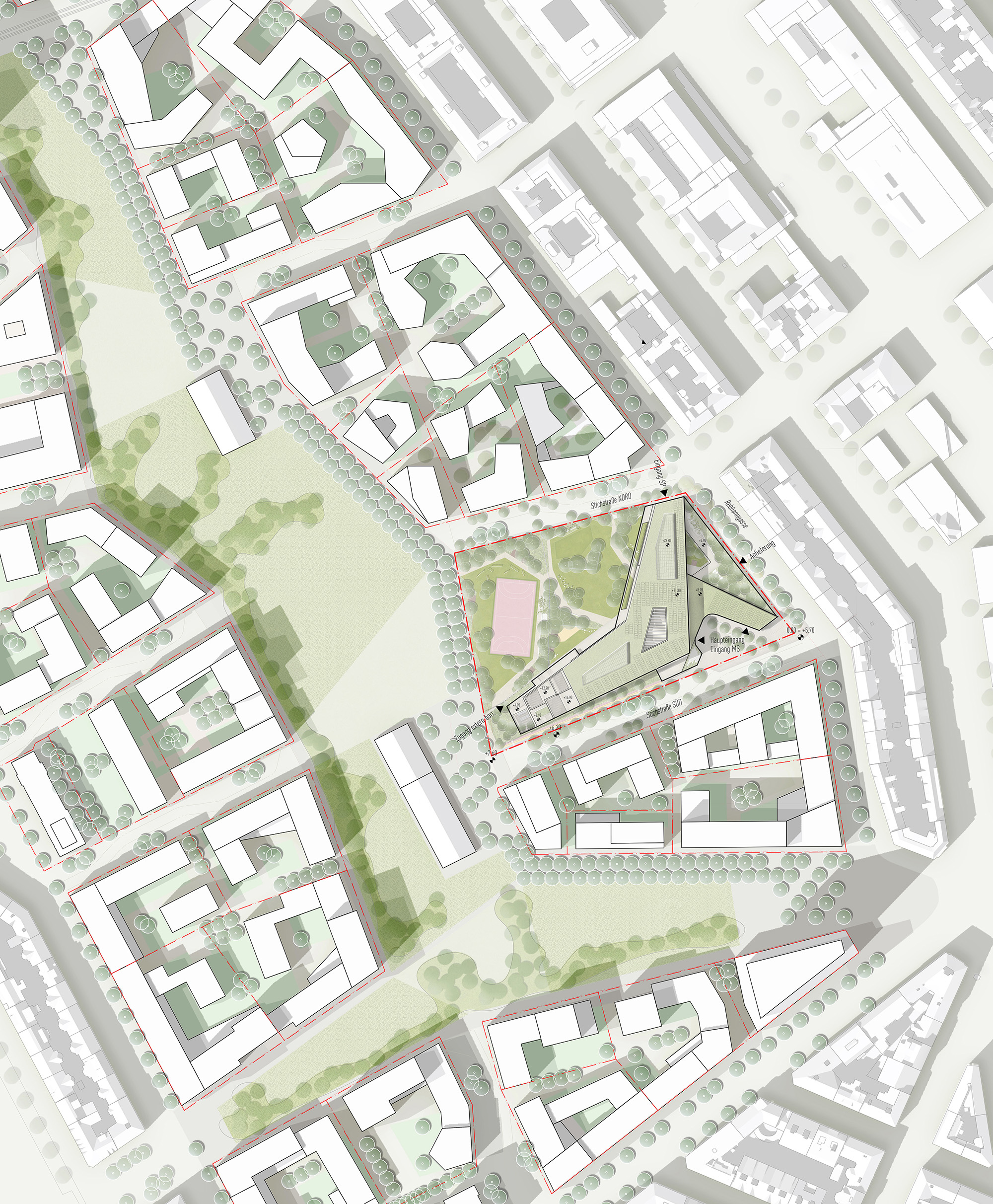

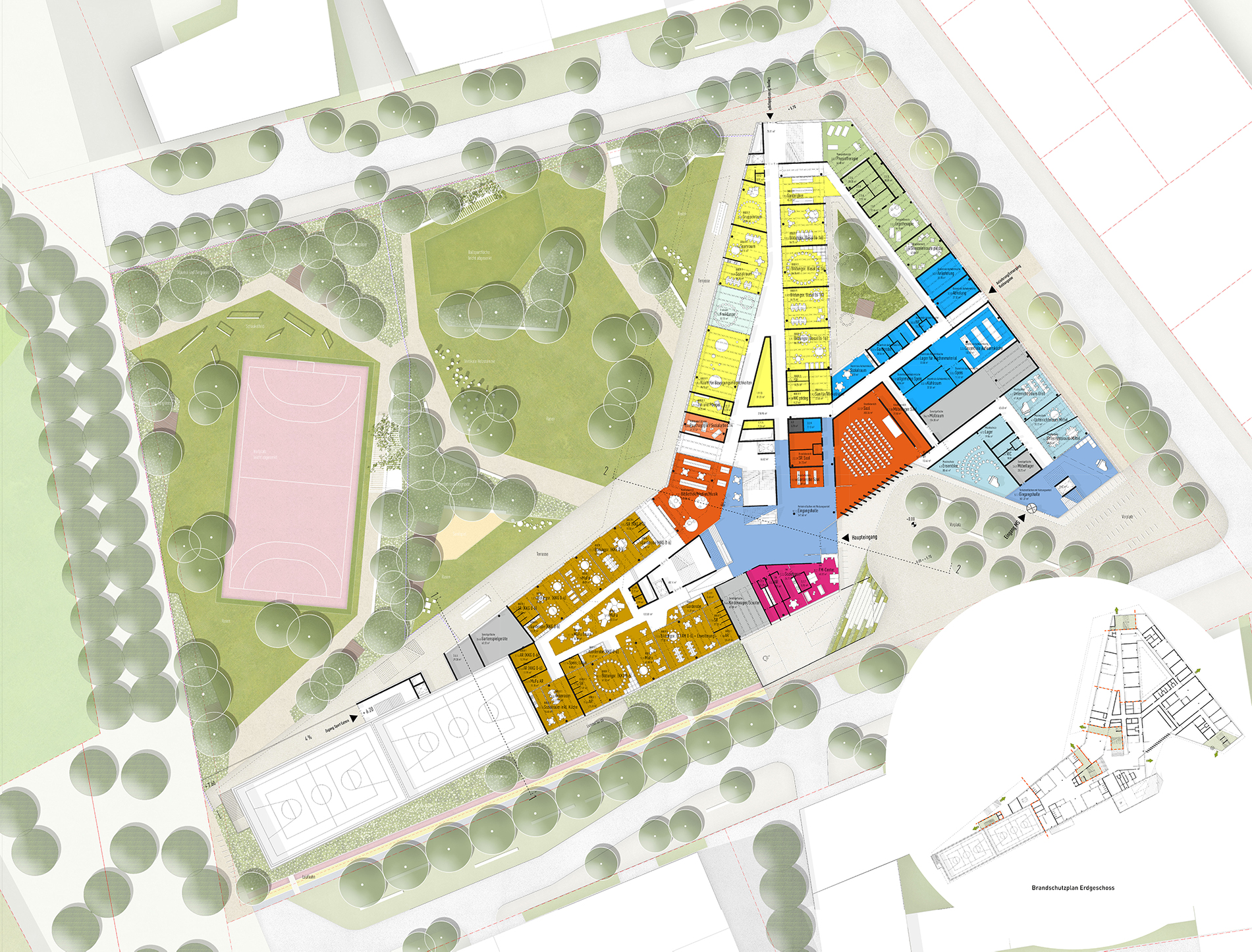

On the one hand, the urban location of the new building ties in with the future built framework of the district and, on the other hand, allows for an expansion of the park and green space. As a spatial ensemble with the architecture, it is necessary to develop and depict the most diverse qualities. A practicable spatial zoning of the individual requirements with different user groups is necessary while maintaining a continuous landscape that is defined by vegetative elements and integrates and incorporates necessary borders and boundaries in terms of design. The school garden is divided into the four required sub-areas, each of which connects to a generous terrace area in front of the building and is accessed from it.

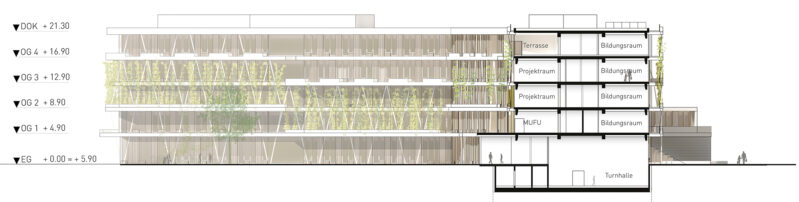

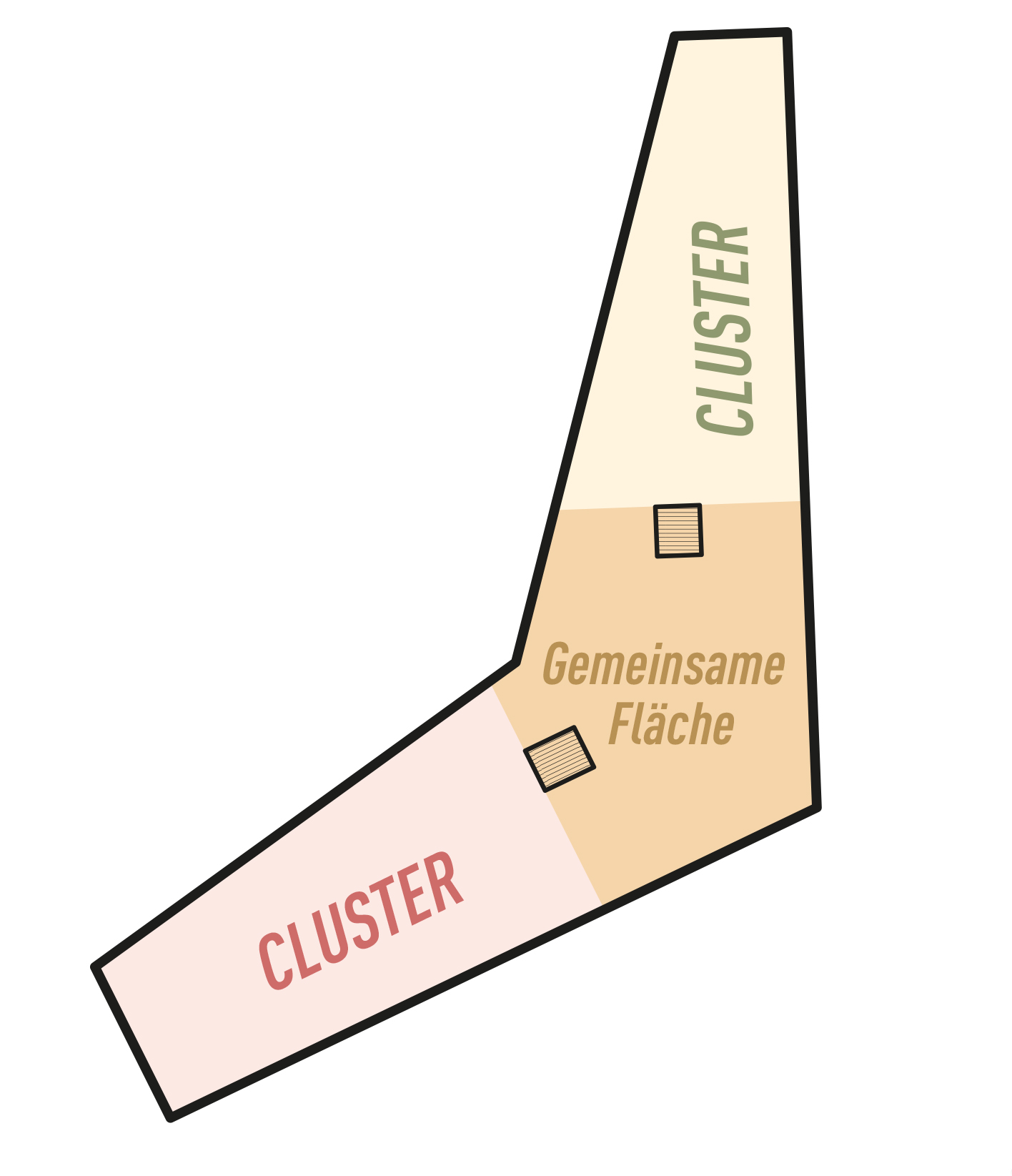

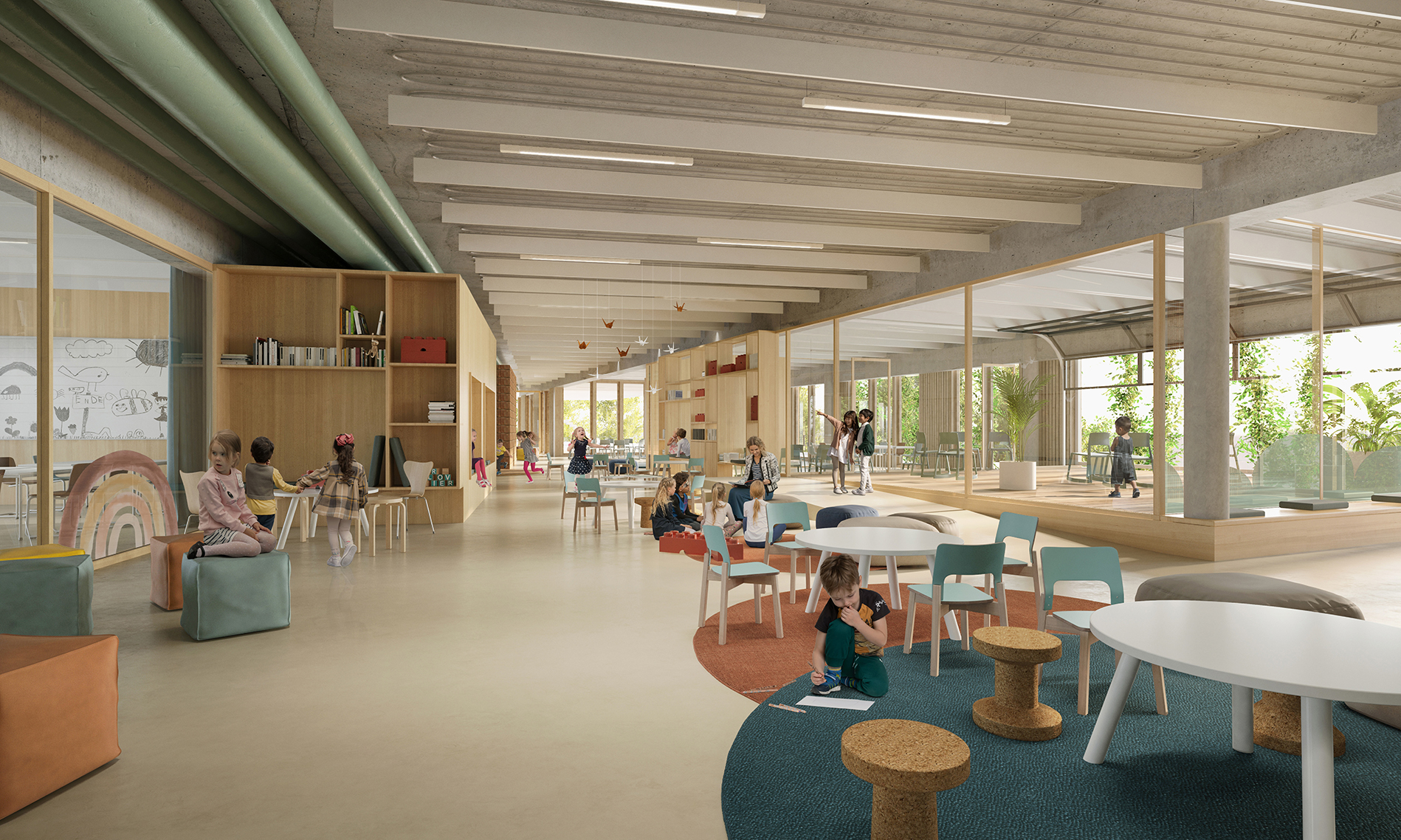

The organization of the building remains, as before, simple and clear: All central and common areas are located in the center, in the middle of the "boomerang". The floor plan solutions of the educational areas in their juxtaposition of educational spaces and multifunctional zones remain intact. The numerous, differently configured terraces allow for a variety of uses, create good structural sun protection, and give the building a lively expression, especially towards the park.

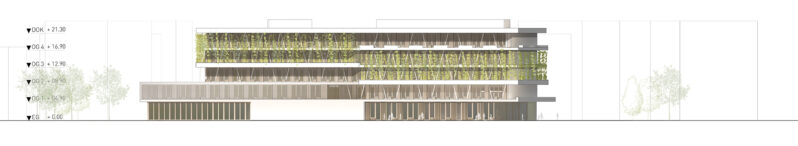

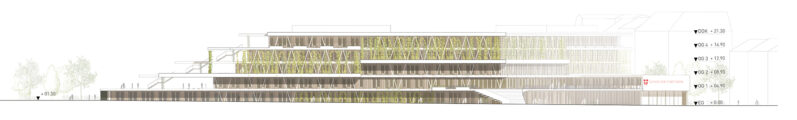

The architectural structuring of the building is achieved through staggering, terracing, projections and recesses of the balcony and terrace areas accompanying the facades, which provide good shading. The greening of the facade not only plays the important climatic and ecological role, but is also used to divide the building into smaller scale sections: The climbing plants each combine two floors
in a staggered manner. A possible adaptation of the facades or even a deconstruction is achievable by dismantling with simple means, a recycling of these elements included. The façade modules are wooden construction frame elements, screwed for common disassembly, using solid wood parts with the exclusion of glued panels as far as possible.
With its urban positioning and its timeless and functionally open architecture, the building lays excellent foundations for longevity and flexibility of use.
Architecture
Pichler & Traupmann Architects
Design team
Bartosz Lewandowski (Team leader)
Anna Chakhal-Salakhova
Patrik Drechsler
Leonie Eitzenberger
Daniel Kith
Alexander Klapsch
Benjamin Sachsalber
Client
City of Vienna
Structural planning
FCP Fritsch, Chiari und Partner ZT GmbH, Vienna
Building services
Gawaplan Haustechnische Anlagen GmbH, Vienna
Electrical planning
Kubik Project Ges.m.b.H., Gießhübl
Structural fire protection
Norbert Rabl ZT GmbH, Graz
Building physics, Energy planning
IPJ Ingenieurbüro P. Jung GmbH, Vienna
Landscape architecture
Lindle+Bukor – atelier für landschaft, Vienna
hard facts
Start of planning: 2022
Usable floor area: 18.603 m²
Gross floor area: 21.172 m²
Gross volume: 92.213 m³
Location: Vienna, 20th district
Use: Education campus
Scope: EU-wide open, double stage competition
Renderings
Patricia Bagienski-Grandits, Vienna

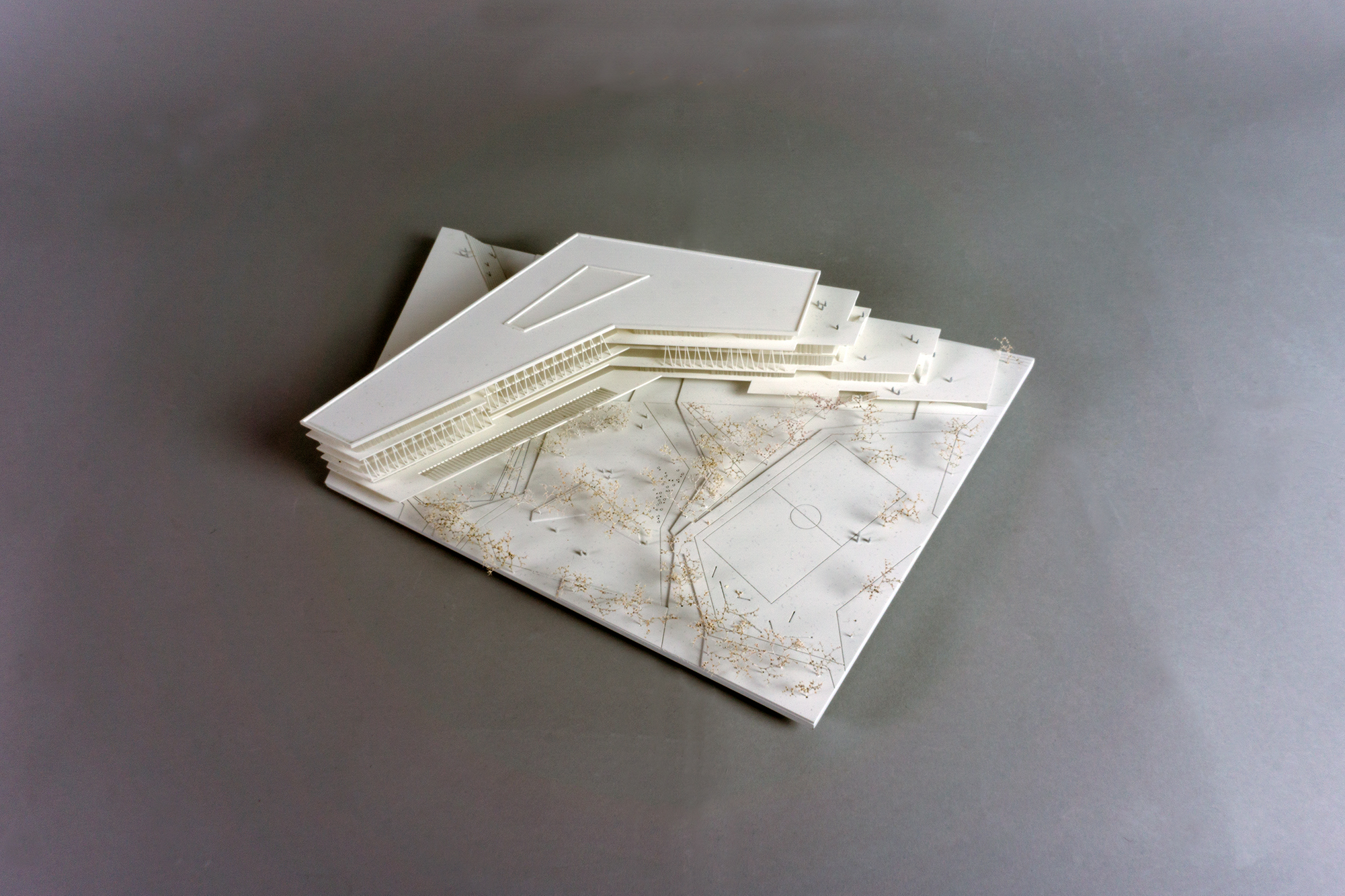

Model
Harald Schmidt, Vienna
