Seestadt Aspern Building Site H6

Seestadt Aspern Baufeld H6 01

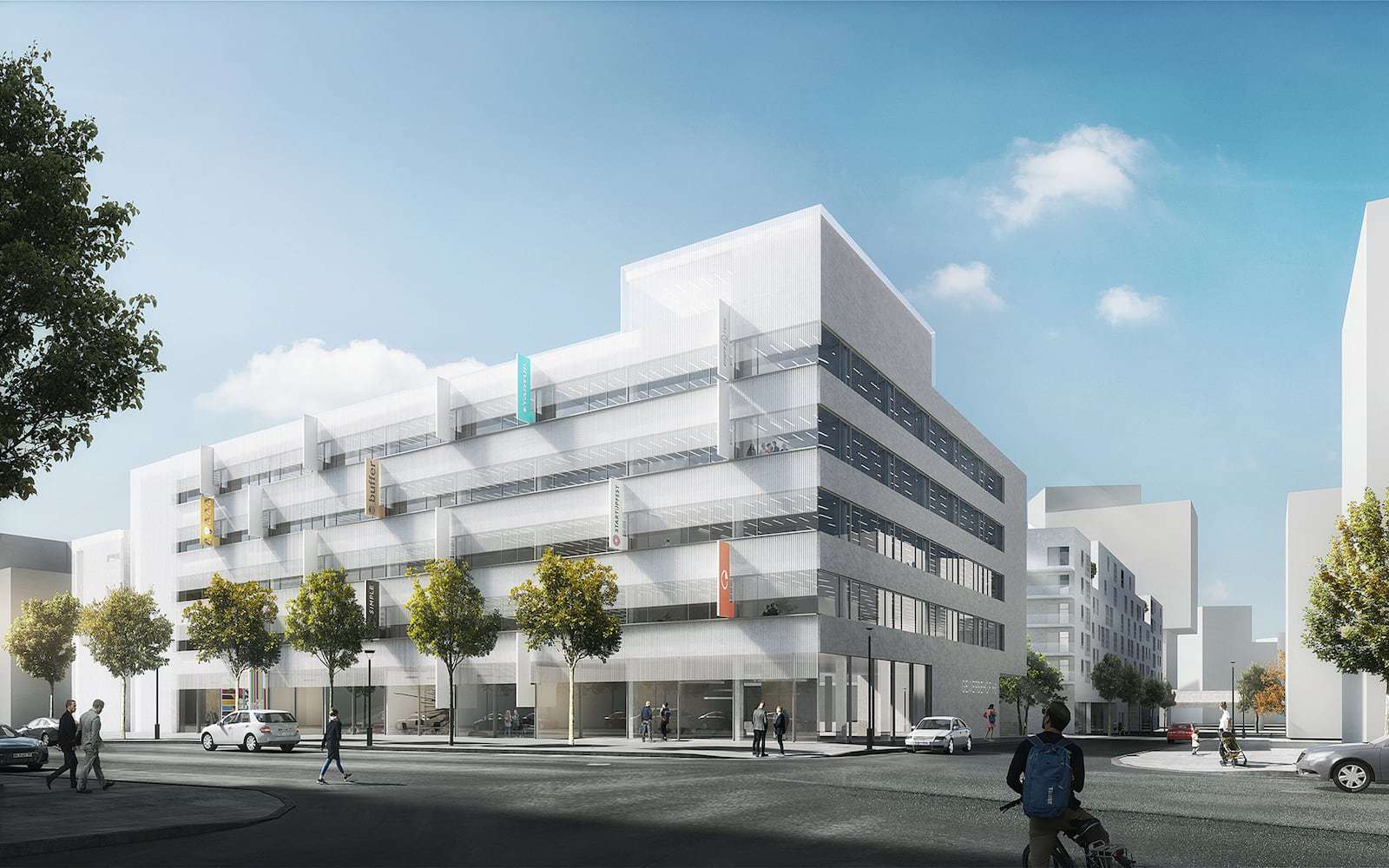

Seestadt Aspern Baufeld H6 02

Located at the interface between Südpark, thelast stop on the U2 metro line, and the lake, building site H6 formsthe prominent start for the quarter “Am Seebogen".

Year

2017

Venue

Vienna

State

Competition

Category

Living

Size

31,639 m²

Year

Venue

State

Category

Size

2017

Vienna

Competition

Living

31,639 m²

Year

2017

Venue

Vienna

State

Competition

Category

Living

Size

31,639 m²

Quarter "Am Seebogen"

The development proposal responds in two ways tothis location’s greater requirement for pathways and a definitespatial presence. While in the ground floor zone the public space iscontinued topographically, which creates maximum permeability, thedevelopment of the upper floors defines urban space with a sharpedge. Generously dimensioned openings and differentiated heightsgenerate exciting views and spatial diversity.

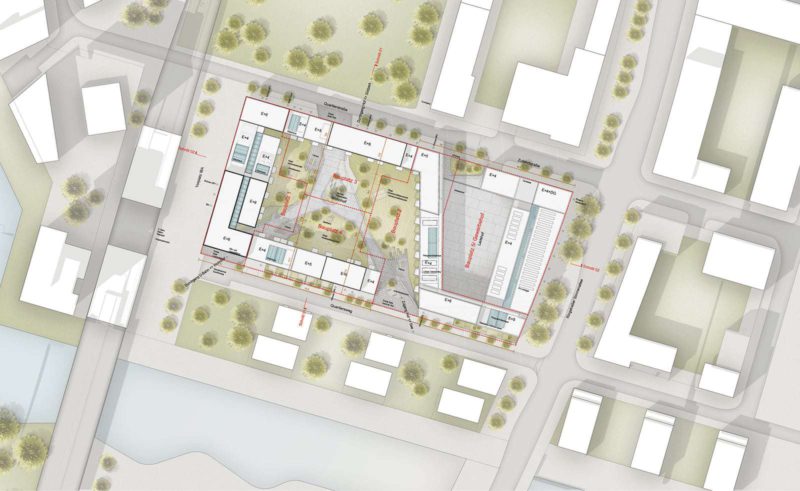

Seestadt Aspern Baufeld H6 05

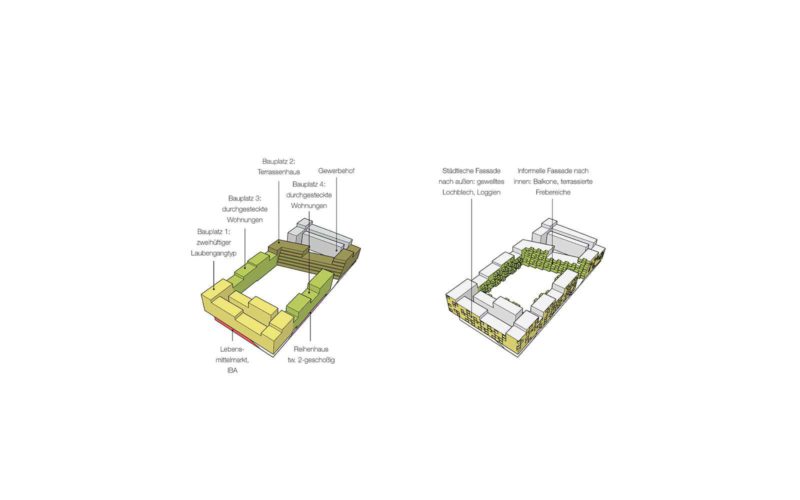

Seestadt Aspern Baufeld H6 04

Topography

By sculpting the new outdoor areas as landscape,the pathways through the site are spatially defined. Coming fromSüdpark the path splits up into three directions: metro, lake,Sonnenallee. Below the new topography at strategic urban designpoints space is generated for functions with an impact on public life(supermarket, IBA etc.)

Two courtyards

Externally the development of the upper floors asa block edge presents a clear front to public space. Internally thefunctional combination of housing and commercial courtyard called foris created in the form of two courtyards: a deliveries yard thatbelongs to the commercial courtyard and a planted residentialcourtyard. Thanks to the numerous routes across the site bothcourtyards have pedestrian friendly connections in the ground floorzone.

By inclining the central building both horizontally and vertically generously sized openings to urban space are created for both courtyards.

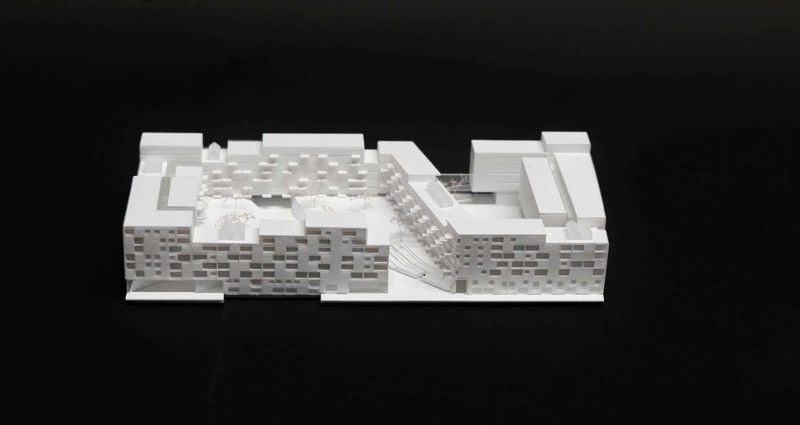

Seestadt Aspern Baufeld H6 Modell 02

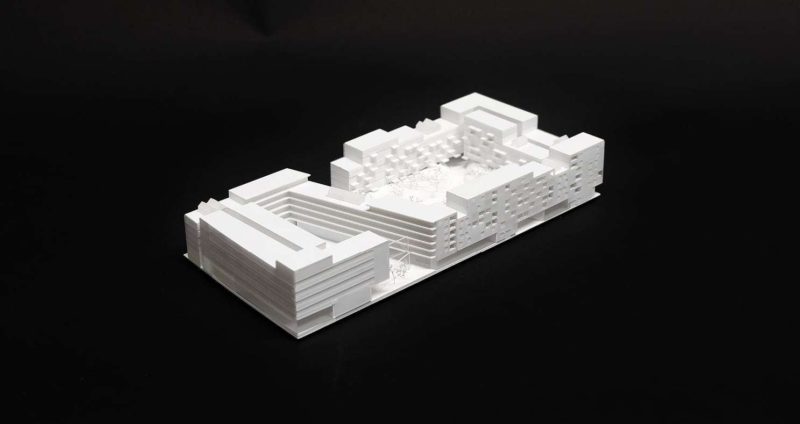

Seestadt Aspern Baufeld H6 Modell 01

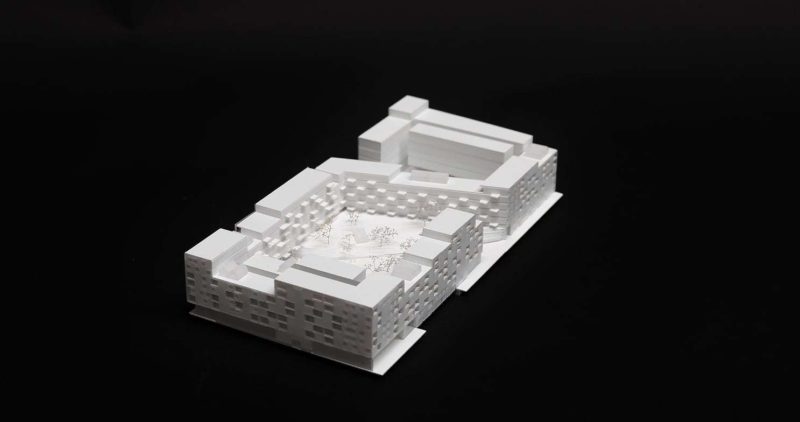

Seestadt Aspern Baufeld H6 Modell 03

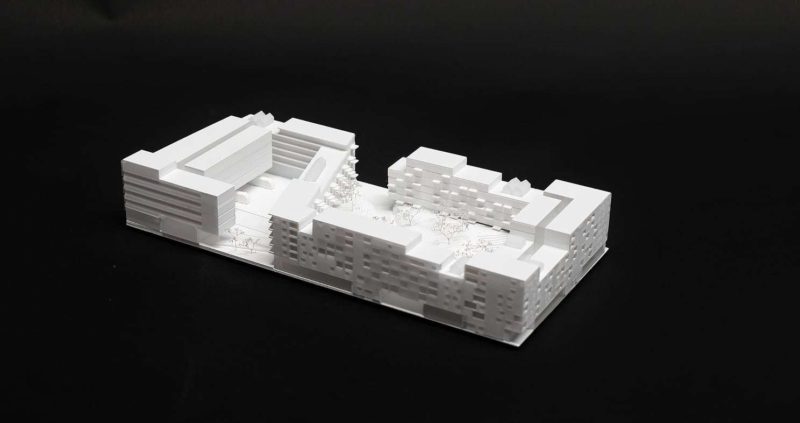

Seestadt Aspern Baufeld H6 Modell 04

Spatial diversity

By differentiating the building heights, thevolumes are structured at their upper and lower edges creatingspatial situations that can be used in a variety of ways. On theroofs there are outdoor areas “furnished” with glasshouses thatcan be used by the residential community and augment the usablepublic space in the courtyard.

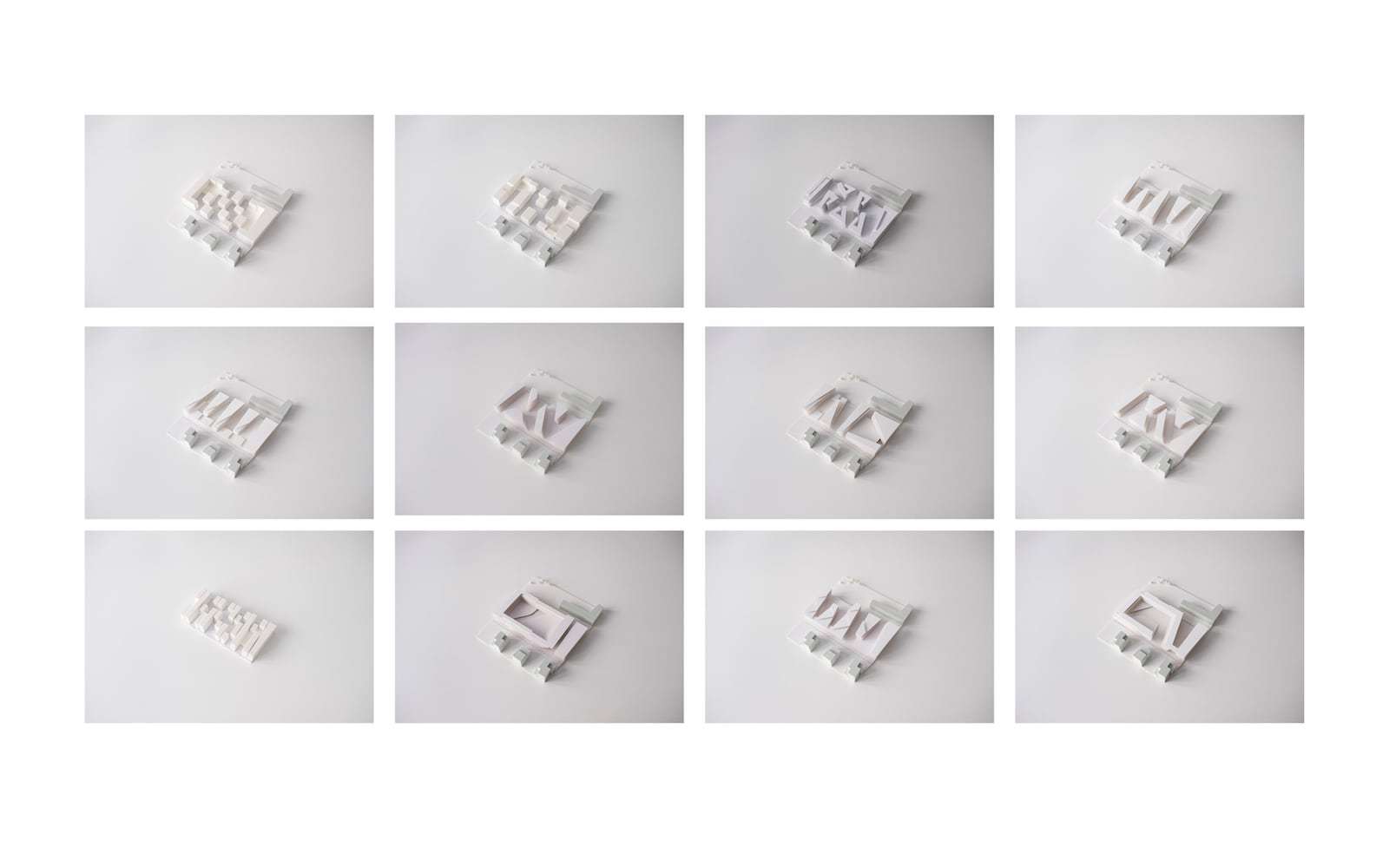

Seestadt Aspern Baufeld H6 Modell 05

Architecture

Pichler & Traupmann Architects

Innocad Architektur ZT GmbH, Graz

Stoiser Wallmüller Architekten ZT GmbH

YEWO Landscapes Ingenieurbüro für Landschaftsarchitektur

Project team

Bartosz Lewandowski
Anna Gulinska
Andreas Schermanns

Client

APHRODITE Bauträger Aktiengesellschaft

ARE Austrian Real Estate Development GmbH

Erste gemeinnützige Wohnungsgesellschaft Heimstätte GmbH

GELUP GmbH

Gemeinnützige Wohn- und Siedlungsgesellschaft Schönere Zukunft GmbH

Structural design

RWT PLUS ZT GmbH, Vienna

Structural fire protection

Norbert Rabl ZT GmbH, Graz

Hard facts

Start of planning: 2017

GFA above ground: 31.639 m²

GFA below ground: 7.856 m²

Usable floor area: 25.763 m²

Location: 22nd district of Vienna, AT

Function: Residential building, business park

Scope: Single-stage, urban planning, architectural competition along with three invited planning teams

Model

Harald Schmidt, Vienna

Rendering

Patricia Bagienski, Vienna

Award

2nd prize
